Port performance

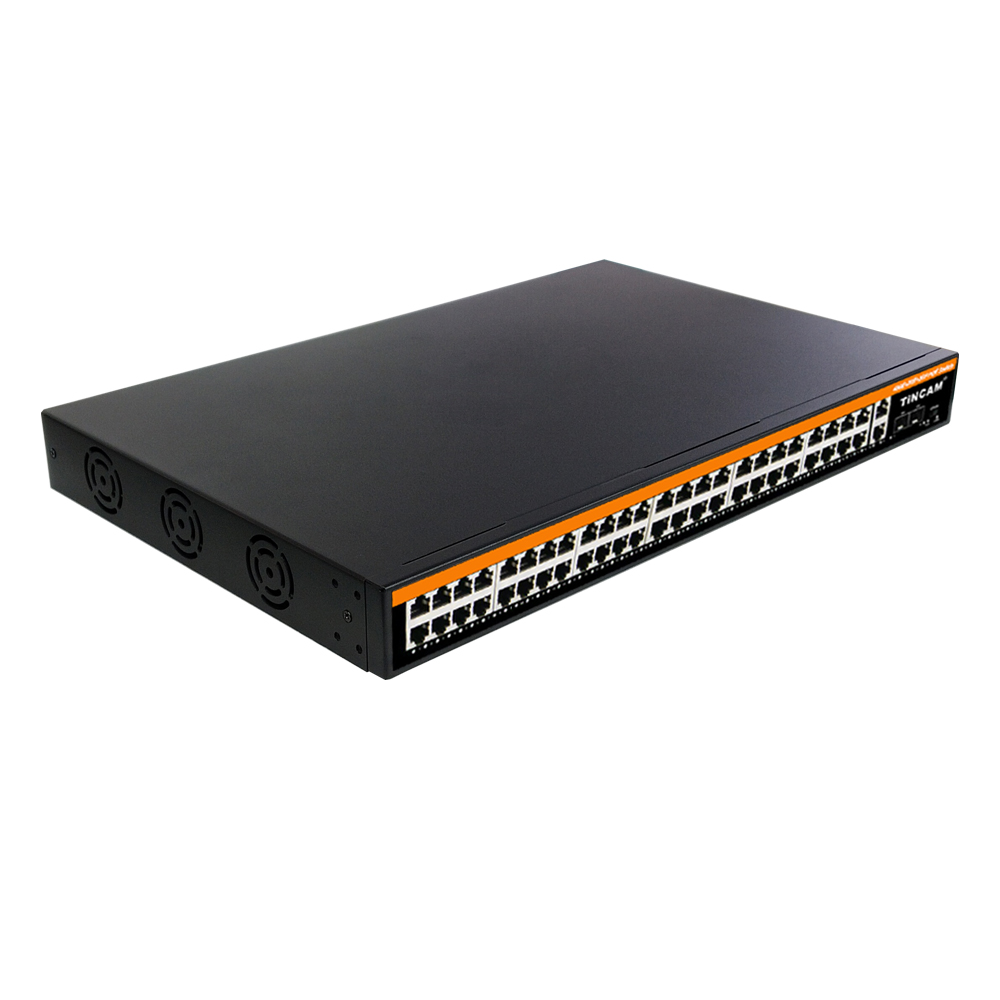

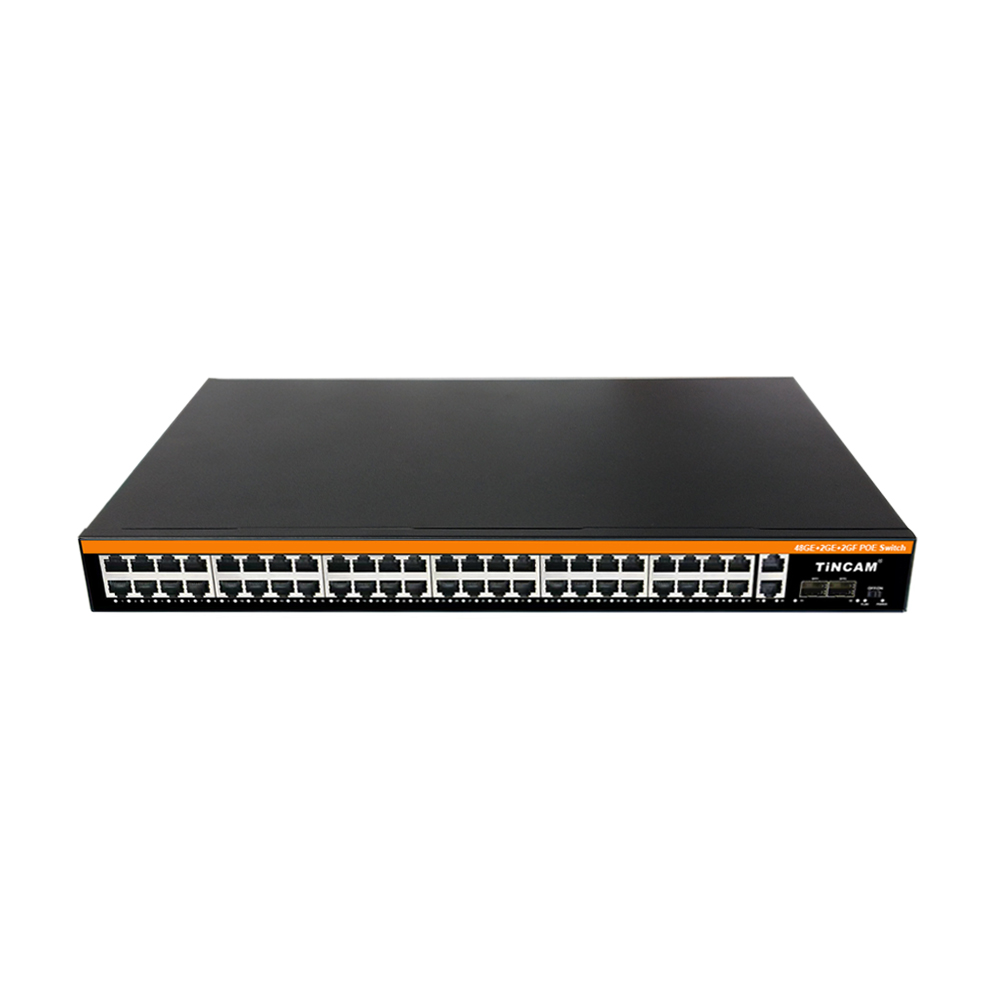

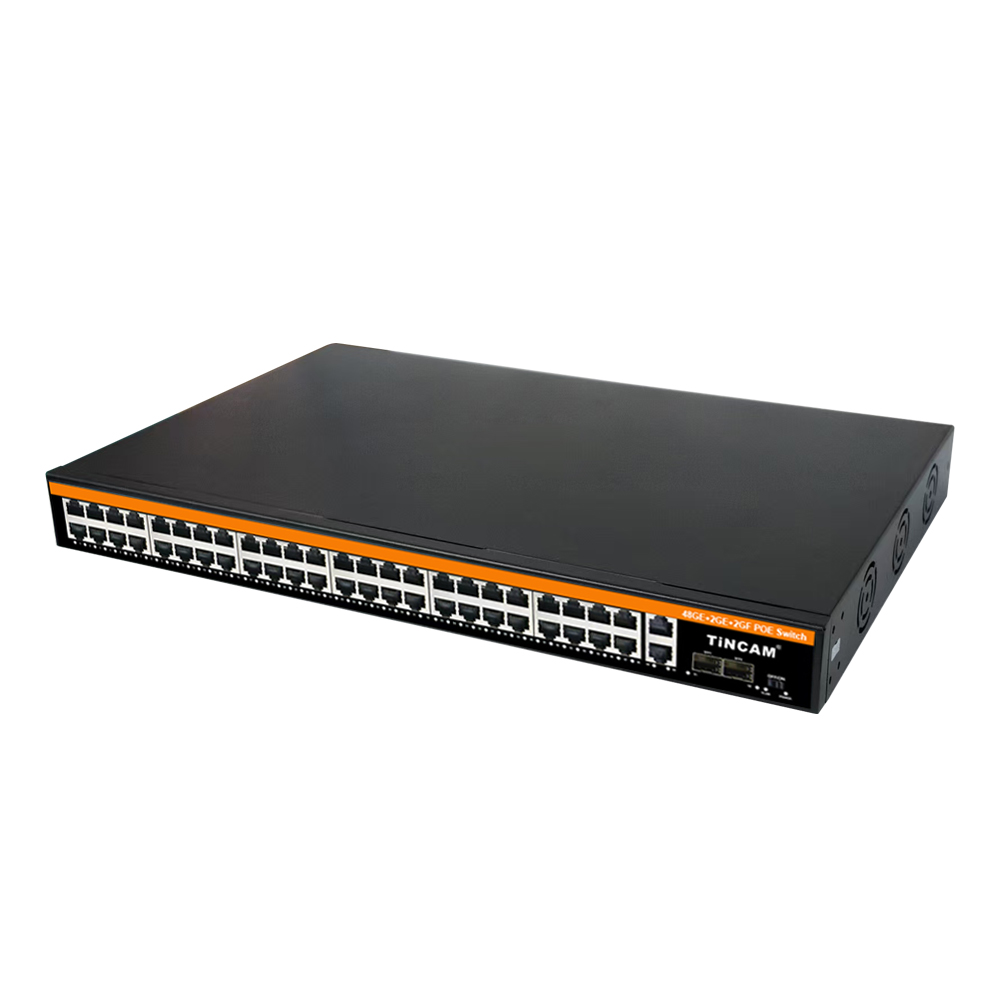

Provides 48 10/100/1000Mpbs RJ45 adaptive high-speed forwarding data without packet loss RJ45 ports.
Provides two 10/100/1000Mpbs RJ45 uplink ports + two SFP optical/electrical multiplexing ports;
Each port supports MDI/MDIX automatic flip and auto-negotiation, and supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control
PoE power supply performance
48 10/100/1000Mpbs RJ45 ports support PoE power supply, meeting the PoE power supply needs of scenarios such as security monitoring, teleconferencing systems, and wireless coverage APs.
Complying with IEEE 802.3af/at PoE power supply standards, the PoE output power of the entire device reaches 700W, and the maximum PoE output power of a single port is 15.4W/30W.
Automatically identifies PoE devices and provides power without damaging non-PoE devices.
PoE ports support a priority mechanism. When the remaining power is insufficient, the power supply of high-priority ports is prioritized to prevent equipment from overloading.
Working Mode
Standard switching mode: all ports communicate freely, suitable for general data transmission environment;
Video surveillance mode: specially designed for surveillance applications to improve the freezing and mosaic phenomena in the surveillance network.
VLAN isolation mode---suppresses network storms and improves network performance.
VLAN switch instructions:
OFF: When the control key is adjusted to this position, it means that ports 1-48 of the POE switch can communicate with each other.
▶ON: When the control key is adjusted to this position, it means that the POE switch ports 1-48 are isolated from each other and can only communicate with the uplink electrical ports 49 and 50 and the SFP1 and SFP2 optical ports respectively.
Stable and reliable equipment
The host has a low power consumption and silent design to ensure stable operation of the product.
It uses a self-developed power supply with a high redundancy design, providing long-term stable 700W PoE power output.
The equipment meets the national CCC standards, fully complies with safety regulations, and is safe and reliable to use.
Simple operation and strong scalability
Easy to use, no configuration required, plug and play, strong compatibility, no device burnout
High-speed transmission, no data packet loss, flexible expansion, so the network is not restricted by power line layout, saving user costs
Meet the network environment that requires high-density PoE power supply
It is suitable for financial institutions, government agencies, hotels, shopping malls, campuses, hospitals and small and medium-sized enterprises to build cost-effective networks.
