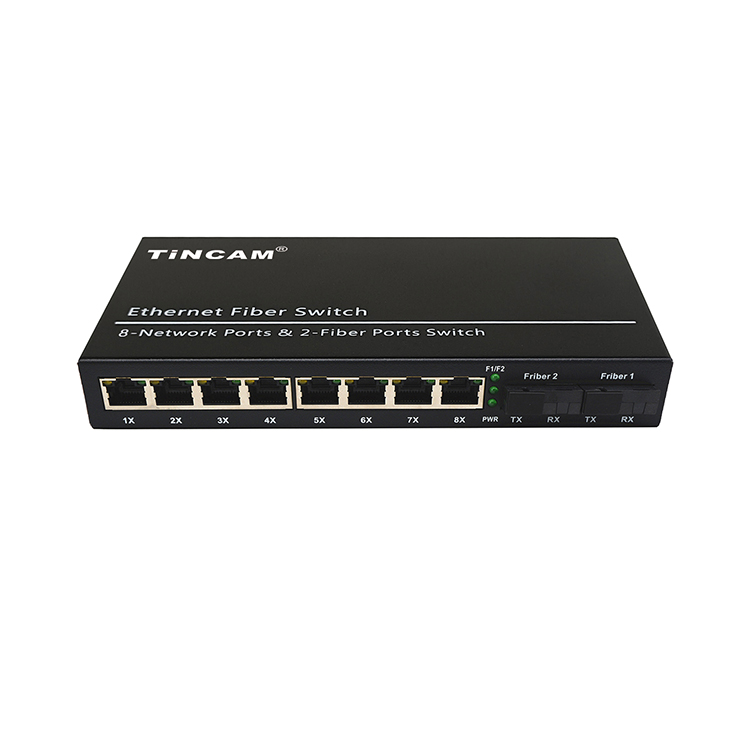

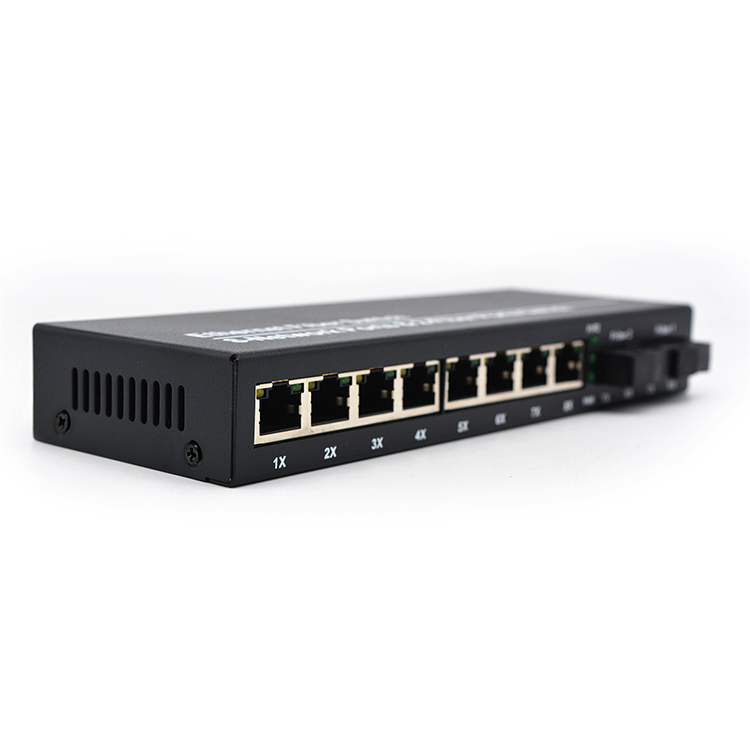

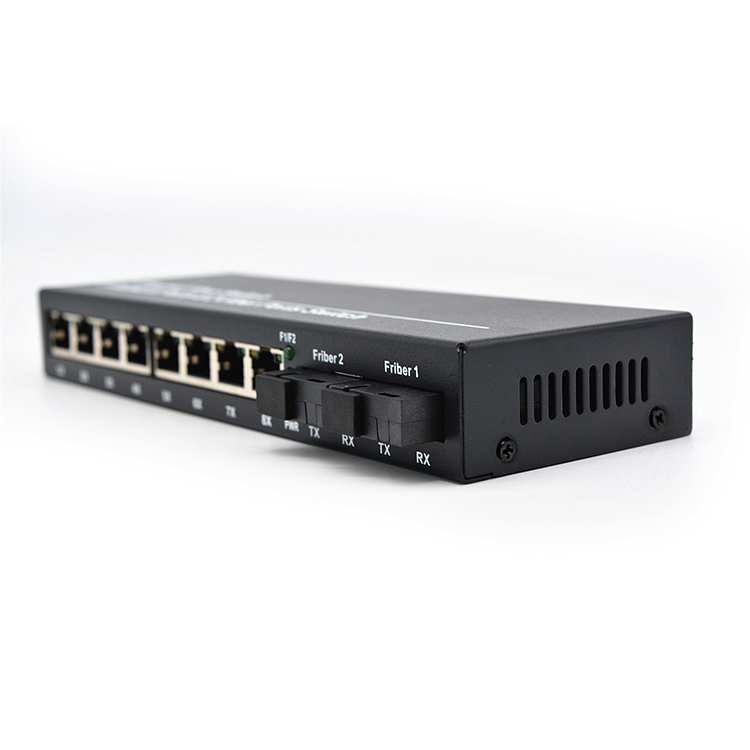

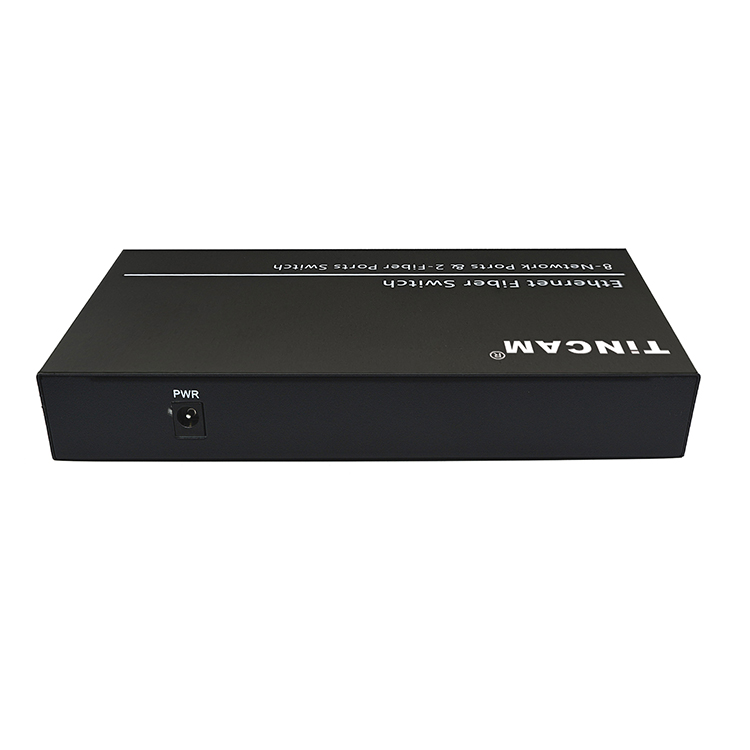

10/100M 2*fiber port +8*POE Ports SC singel mode single fiber POE switch

The TBC-PSF4328ES20AB POE Switch supports the IEEE802.3af/at power over Ethernet standard with a power distance of 100 meters and only powers 802.3af/at terminal devices, so there is no need to worry about compromising proprietary standards for POE or non-POE devices. In addition, the POE device stops supplying power when it is not connected. These devices, which are far from the power outlet, are suitable for hanging on the wall or on the ceiling, and the POE eliminates the need to connect the power outlets for these devices, making the connection to equipment that is difficult to connect to AC power more flexible and with minimal installation costs. This series POE Powered switches are ideal selection for small business networks that want to use the economic deployment of wireless access points (AP) and IP-based network surveillance cameras .


  • Features
  • Parameters
  • Size
  • Information
  • application
  • Download

  • Product characteristics

    l Support full port IEEE802.3af/at standard

    l Transmit Ethernet data through a network cable and provide power supply function;

    l It can automatically detect and identify PD power receiving equipment that

    meets the IEEE802.3af/IEEE802.3at standard;

    l Support port power supply priority to ensure continuous power supply at network gateways;

    l It has a short-circuit protection function. When the current is too large or the PD device fails, the power supply will be stopped to protect the PD powered device;

    l It comes with energy-saving and environmental protection, supports automatic standby mode and cable length and other functions, that is, automatically standby to save energy when the port is not connected. When the cable length is less than 10 meters, it provides the power transmission rate;

    l Full-series product line: 1-8 POE power supply port selection, 1-2 SC optical port cascade applications;

    l POE cable transmission distance can reach 100 meters, and optical fiber transmission distance can reach 20km



    Stable and reliable equipment

    l Simple operation and strong expansibility;

    l Easy to use, no need to configure, plug and play, strong compatibility, no burning device;

    l High speed transmission, no packet loss, flexible expansion, so that the network is not limited by power line layout, saving user costs;

    l Meet the demand of high density Poe power supply network environment;

    l It is suitable for financial institutions, government agencies, hotels, shopping malls, campuses, hospitals and small and medium-sized enterprises to establish a cost-effective network.


  • Item

    Description

    Power

    Input voltage

    AC100-240V

    Output voltage

    DC48V~52V

    Total Power

    120W, Built-in power supply

    Network Connector

    Ethernet Port

    1～8 Port : 10/100Mbps     POE Ethernet Port

    9~10 Port : 10/100Mbps    SC Fiber Ports

    Transmission Distance

    1～8 Port: 0~100m

    9~10 Port : 0~20km

    Transmission Medium

    Cat5/5e/6 standard network cable

    Single-mode simplex fiber optic patch cord

    Network Switch

    Network Standard

    IEEE802.3X, IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX,  100BASE-BX，IEEE802.1Q, IEEE802.3az.

    Switching Capacity

    2Gbps

    Packet Forwarding Rate

    1.488Mpps

    Power Over Ethernet

    POE Standard

    IEEE 802.3af/at

    POE Power Consumption

    af≤15.4W , at≤30W , (POE port)

    Connection Pins

    Data pins:100M:12 +/36-, power pins:12+36-

    LED Status Indicator

    POE Ethernet LED Indicator

    POE: 8 yellow lights indicate that the POE is power on;

    Ethernet: 8 green lights indicate that the Ethernet link and act;

    Fiber Ports LED Indicator

    F1/F2 green lights indicate that the Ethernet link and act

    Power LED Indicator

    Power: 1 red light indicates that the power normal work;

    Environmental

    Working temperature

    -30～+80°C

    Relative humidity

    5%～90% RH non-condensing

    Storage temperature

    -40～+85°C

    Storage humidity

    5%～95% RH non-condensing

    Mechanical

    Dimension (L×W×H)

    202*140*45mm

    Color

    Black

    Weight

    1.1kg

    Stability

    MTBF

    >30000h


  • 199mm*88mm*25mm（L*W*H）


  • Model
    		Describe
    TBC-PSF4328ES20AB100Mbps  8-power POE fiber switch: 2 100Mbps SC optical port+8 10/100M   POE  power supply ports, supporting international standard IEEE802.3af/at, port power supply 30W, overall power 120W, external power supply, single-mode single fiber 1310/1550nm, 20Km SC interface
