24+4+4 BT(60W) 10/100/1000M POE Switch

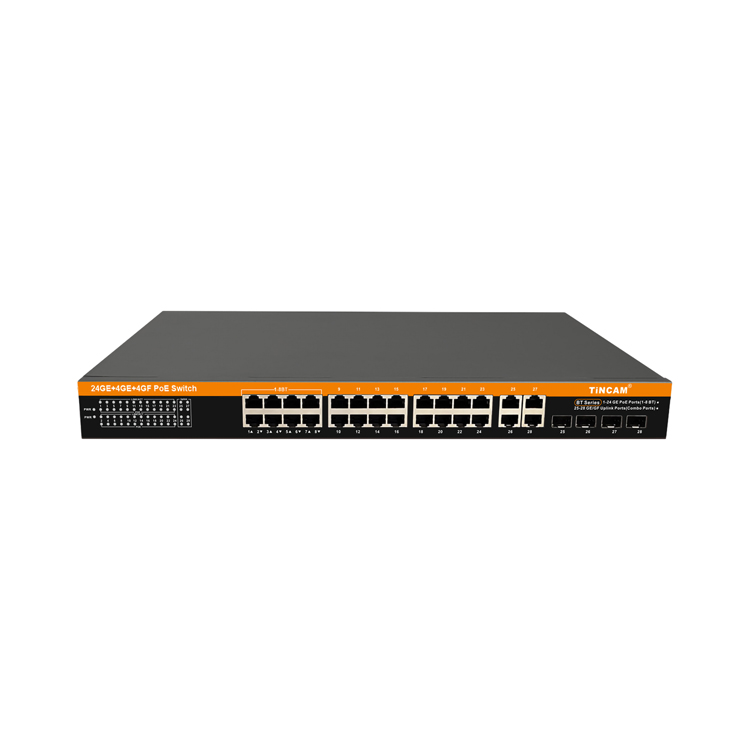

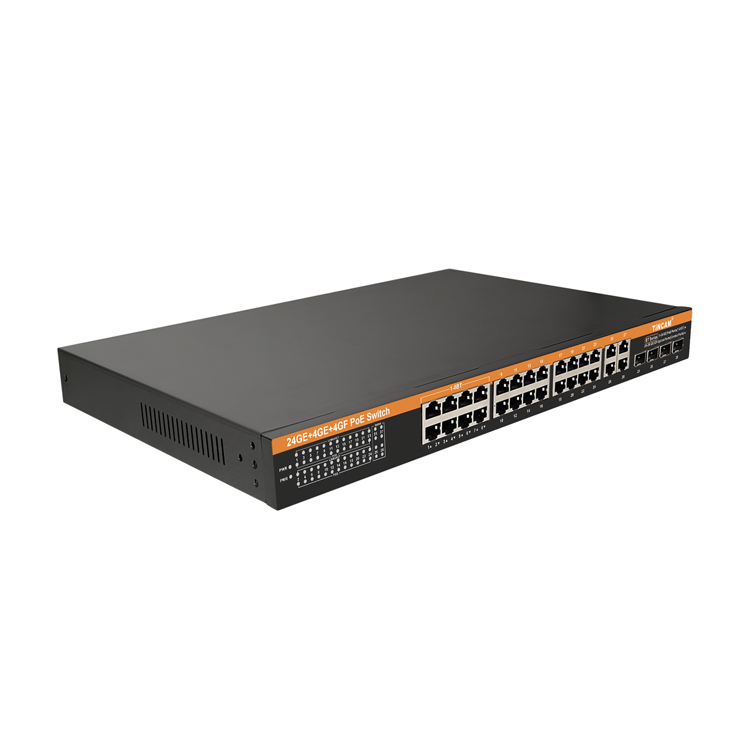

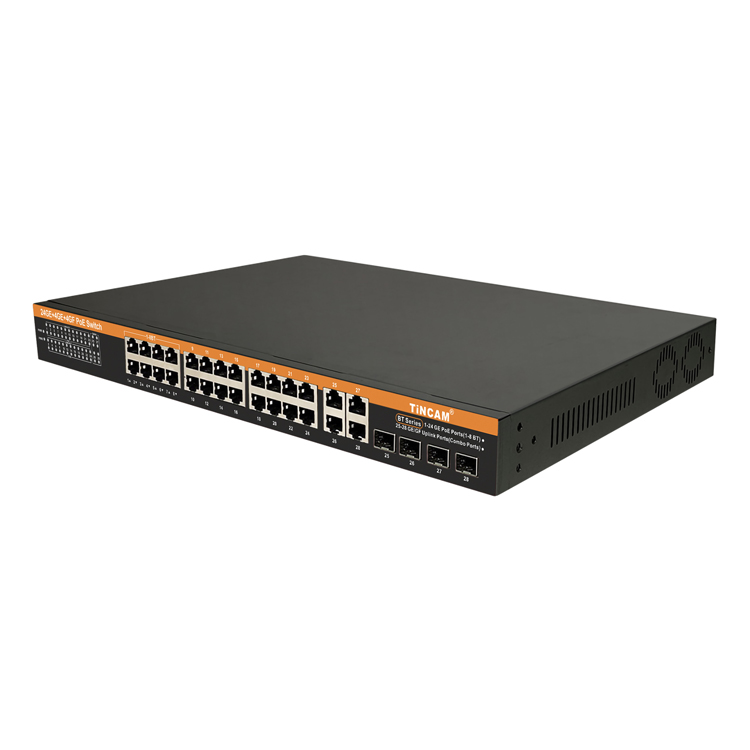

The TBC-PSDL5124U-4CF is an independently developed and designed product by Tianbo Communication specifically to meet PoE++ power supply requirements. It adopts the latest high-speed Ethernet switching chip, features an ultra-high backplane bandwidth design, and boasts extremely fast data processing capabilities, improving smooth data transmission performance. Specifications to meet application scenario needs: 24+4+4 product; it has 24 Gigabit PoE RJ45 auto-sensing Ethernet ports, providing 4 10/100/1000Mbps RJ45 uplink ports + 4 SFP Gigabit multiplexed optical ports. Ports 1-8 support IEEE 802.3af/at/bt standard PoE++ power supply, with a maximum port output power of 60W; the total power consumption is 400W . It can automatically detect and identify powered devices conforming to the IEEE 802.3af/at/bt standard and provide priority power via network cable, better meeting the requirements of field power supply equipment.


  • Features
  • Parameters
  • Size
  • Information
  • application
  • Download

  • ▼Product Features

    Port performance:

    It provides 24 10/100/1000Mbps RJ45 adaptive high-speed forwarding data RJ45 ports, and 4 10/100/1000Mbps RJ45 uplink ports + 4 SFP gigabit multiplexed optical ports;

    Each port supports MDI/MDIX auto-flipping and auto-negotiation, and supports IEEE 802.3x full-duplex flow control and backpressure half-duplex flow control;



    PoE++ power supply performance

    The device is equipped with 24 10/100/1000Mbps RJ45 ports, all supporting PoE+ power supply. Ports 1–8 support PoE++ power supply, meeting the application requirements of high-power scenarios such as security monitoring, video conferencing, and wireless coverage. The product complies with the IEEE 802.3af/at/bt PoE power supply standard, with a maximum PoE output power of 400W for the entire unit and a maximum output power of 15.4W/30W/60W for a single port.

    The port can automatically identify the powered device (PD) and intelligently supply power to ensure safe and stable power supply and avoid damage to non-PoE devices.

    The device supports a PoE port priority mechanism. When the system's remaining power is insufficient, it can prioritize the normal power supply of high-priority ports, effectively preventing the device from malfunctioning due to power overload and improving the overall stability and reliability of the system.



    The equipment is stable and reliable.

    The host unit features a low-power, quiet design to ensure stable product operation.

    It adopts a self-developed power supply with high redundancy design, providing a long-term stable 400W PoE++ voltage output.

    The equipment complies with safety regulations and meets national CCC standards, making it safe and reliable to use.



    Simple to operate and highly expandable

    It's simple and convenient to use, requires no configuration, is plug-and-play, highly compatible, and won't damage your devices.

    High-speed transmission, no data loss, and flexible scalability mean the network is not limited by powerline layout, saving user costs.

    Meeting the needs of network environments requiring high-density PoE++ power supply

    Suitable for financial institutions, government agencies, hotels, shopping malls, campuses, hospitals, and small and medium-sized enterprises to build cost-effective networks.

  • Model

    TBC-PS5524U4D-4PF

    Network Standards

    IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

    port

    PoE port

    24 10/100/1000Mbps RJ45 ports

    UPLINK port

    Four 10/100/1000Mbps RJ45 uplink ports

    4 Gigabit SFP uplink multiplexed optical ports

    PoE power supply

    Ports 1–8: Support IEEE 802.3af/at/bt PoE/PoE+/PoE++, with a maximum power of 60W per port.

    Ports 9–24: Support IEEE 802.3af/at PoE/PoE+, up to 30W per port.

    PoE Total Power Budget: 400W

    POE Standard

    IEEE 802.3 af/at/bt

    Wiring method

    Ports 1–8 (IEEE 802.3bt):

    1/2(+), 3/6(-), 4/5(+), 7/8(-) (4-pair PoE power supply)

    Ports 9–24 (IEEE 802.3af/at):

    1/2(+), 3/6(-) or 4/5(+), 7/8(-) (2-pair PoE power supply)

    transmission medium

    RJ45 port:

    1000BASE-T: Cat5e or higher specification UTP/STP (≤100m)

    SFP Port:

    1000Base-X SFP Optical Module (Combo/Multiplex Port)

    Transmission distance depends on the optical module used.

    POE distance

    100m

    Forwarding mode

    Store-and-forward mode

    MAC address

    8K

    Switching capacity

    64Gbps

    Forwarding rate

    Full-speed filtering and forwarding: 47.616 Mpps;

    Port Function

    Power priority mechanism, fast forwarding, MAC automatic learning and aging

    IEEE 802.3X Full-Duplex Flow Control and Backpressure Half-Duplex Flow Control

    indicator lights

    PWR: Power indicator light

    PoE (1–24): PoE status indicator

    LINK/ACT (1–24): Network status indicator

    Uplink (25–28): Optical port status indicator

    Total power

    400W

    power supply

    AC 100–240V, 50/60Hz

    Usage Environment

    Operating temperature: -30℃ to 60℃

    Storage temperature: -40 to +75°C;

    Operating humidity: 5%～90% RH, non-condensing;

    Storage humidity: 5%～95% RH, non-condensing.

    weight

    ≤5KG

    size

    435*281*45mm

  • Size: 435*281*45mm



  • ModelSpecifications
    TBC-PSDL5124U-4CFFull Gigabit 32-port BT-POE switch: 24 Gigabit POE intelligent power supply interfaces (1-4 ports support BT60W) + 4 Gigabit uplink electrical ports + 4 Gigabit SFP optical ports(COMBO), supporting long-distance power transmission; supports international standards IEEE802.3af/at/BT, port power 30-60W, total power of the whole machine 400W; 1U rack-mounted built-in power supply structure
