l Exchange capacity: 6.2Gbps, packet forwarding rate:5.376Mpps, MAC address table: 4K;

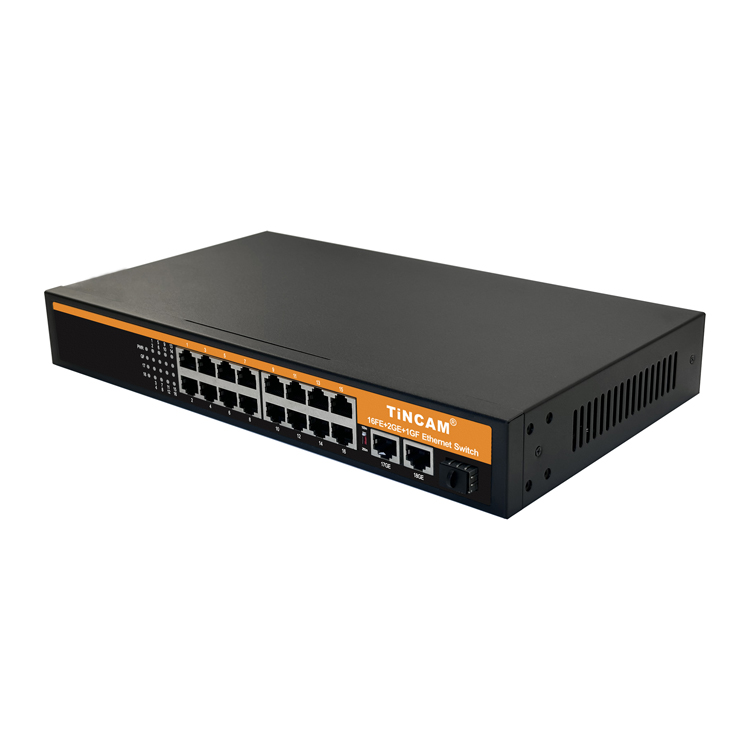

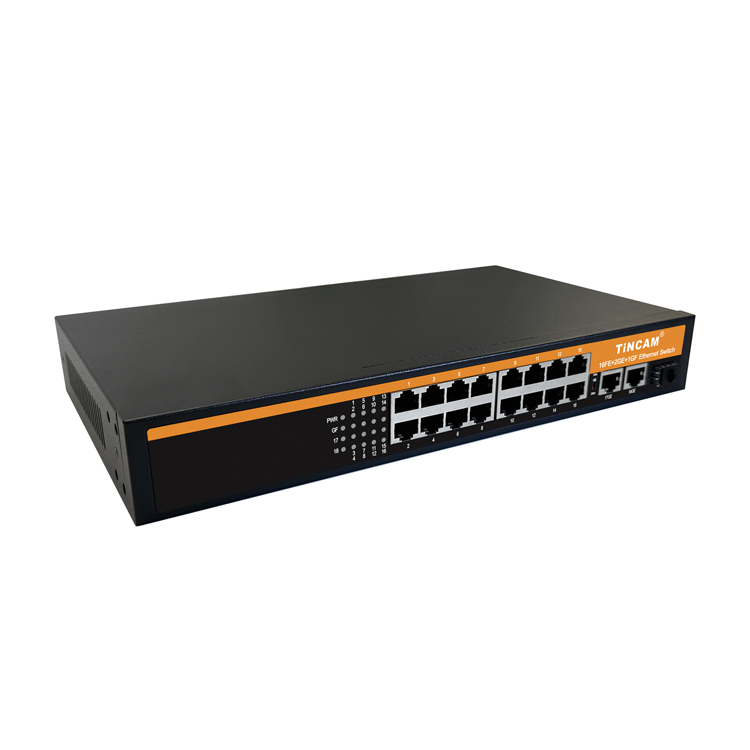

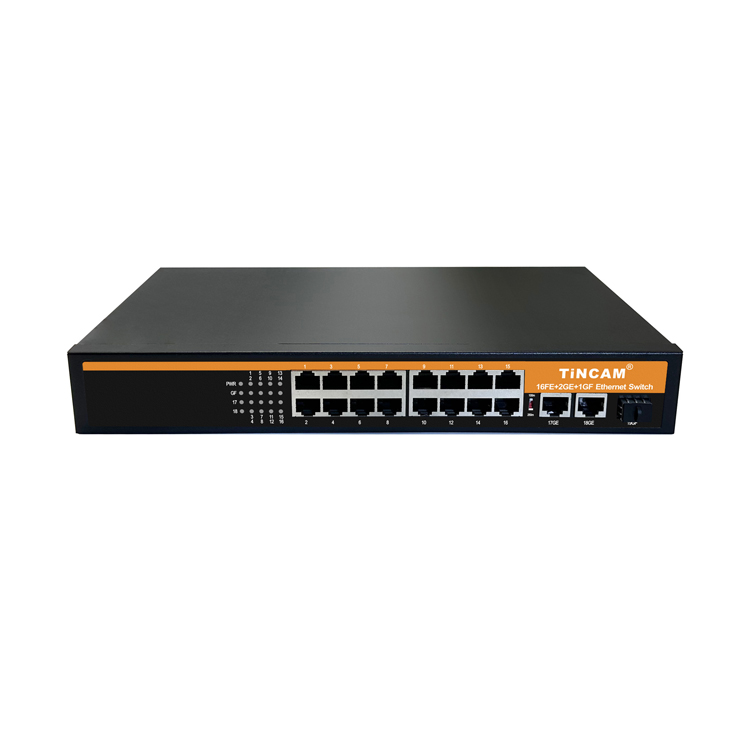

l Provides 16*10/100Base-Tx electrical interface;2*10/100/1000Base-Tx Uplink; 1*1.25G SFP Port;

l Security features: support for access to the user MAC address limit and port-based MAC address binding, filtering;

l Support port broadcast / multicast packet suppression; Support 802.1X authentication; Support CPU anti-DoS attack technology;

l Support custom message filtering based on TCP / UDP port;

l VLAN: Support IEEE 802.1Q VLAN, VLAN ID: 1-4094; support management VLAN;

l Support queue scheduling algorithm such as FIFS, SP, WRR;

l Reliability: support static link aggregation; support loop detection; support STP/RSTP;
l Port Features: Support bidirectional bandwidth rate control; support port bi-directional traffic mirroring;
