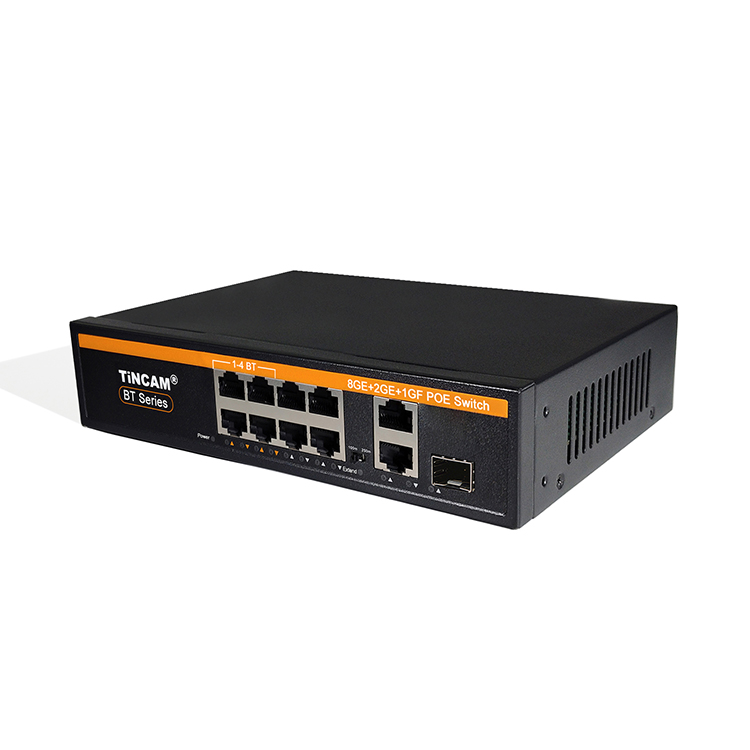

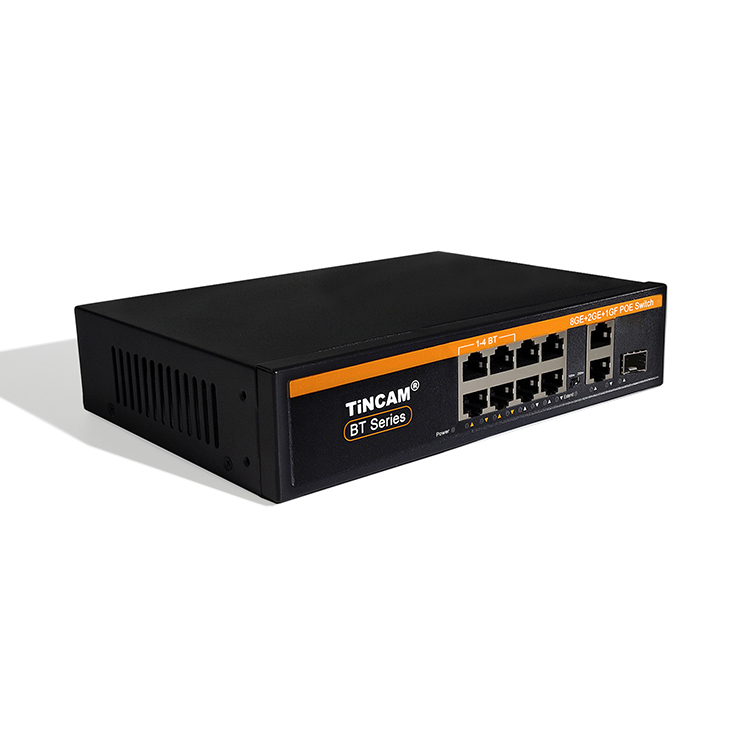

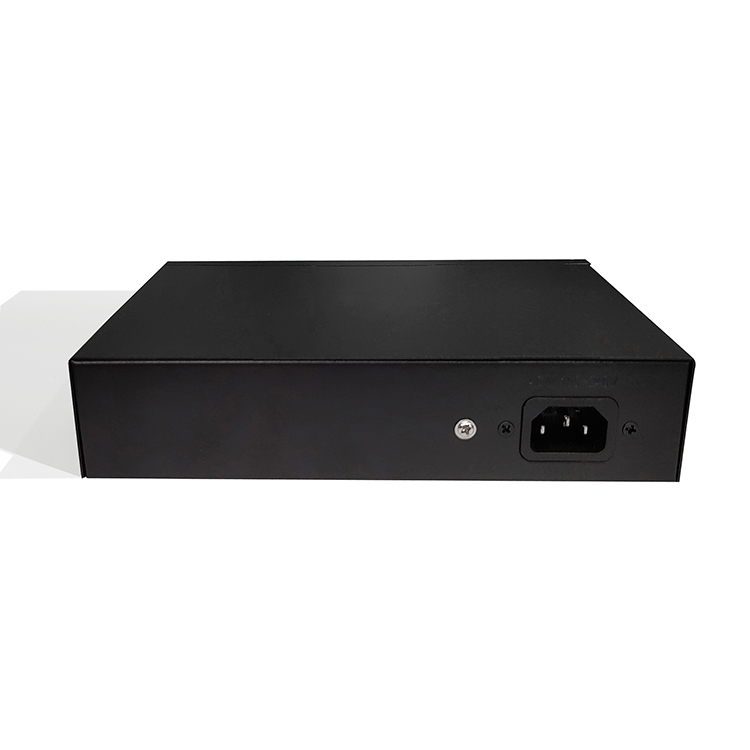

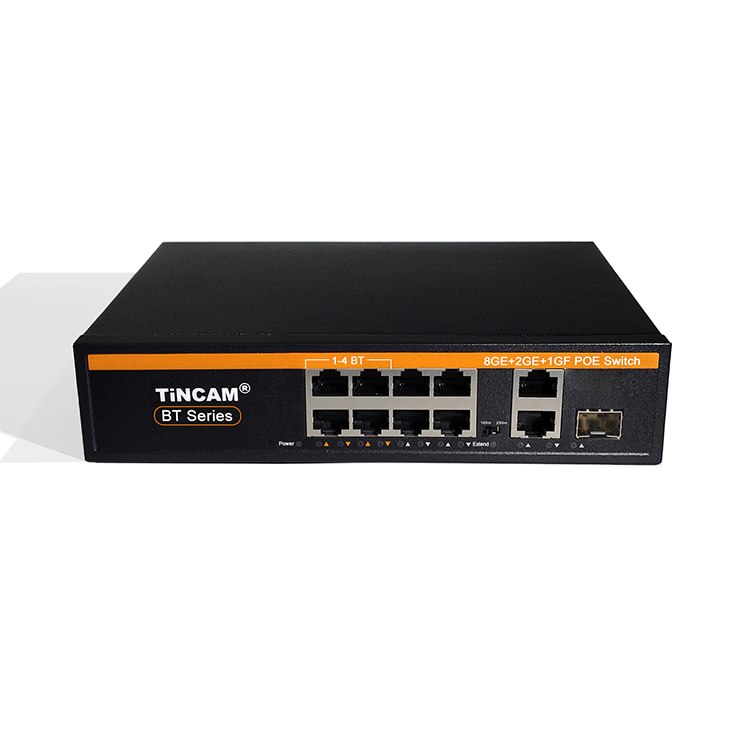

8+2+1 BT(60W) 10/100/1000M POE Switch

TBC-PSD5511N-3PF is an independent innovative research and development design by Tianbo Communication specifically to meet the POE++ power supply needs. It adopts the latest high-speed Ethernet switching chip and ultra-high backplane bandwidth design. It has extremely fast data processing capabilities and improves smooth data transmission performance. AI intelligent watchdog function, support VLAN, support 10M bandwidth transmission; specifications to meet the needs of application scenarios: 8+2+1 product ; with 8 Gigabit POE power supply RJ45 adaptive Ethernet ports, 2 RJ45 Gigabit uplink ports,1 SFP Gigabit uplink ports. The 8 Gigabit RJ45 ports support IEEE 802.3af/at/bt standard POE power supply, and the maximum power supply power of a single port is 15.4W/30W/60W; among them, ports 1-4 support IEEE 802.3af/at/bt standard POE++ power supply, port power 60W; the whole machine power is 120W/200W. It can automatically detect and identify powered devices that comply with the IEEE 802.3af/at/BT standards, and provide power through the network cable as a priority mechanism. It also has a built-in watchdog function, which automatically delivers power when the front-end device encounters a power outage, meeting the requirements of on-site power supply equipment.


  • Features
  • Parameters
  • Size
  • Information
  • application
  • Download

  • Port performance:

    Provides 8 10/100/1000Mpbs RJ45 adaptive high-speed forwarding data RJ45 ports, and ports 1-4 support POE+BT power supply 60W to meet project applications;

    Provides 2 10/100/1000Mpbs RJ45 uplink ports + 1 Gigabit SFP optical ports;

    Support automatic identification of watchdog function;

    Support VLAN function;

    Support 10M long distance transmission;

    Each port supports MDI/MDIX automatic flipping and auto-negotiation, and supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control;



    PoE+ power supply performance

    The 8 10/100/1000Mpbs RJ45 ports support POE+ power supply, of which ports 1-4 support POE++ power supply, meeting the POE++ power supply requirements of security monitoring, teleconferencing systems, wireless coverage, etc. It complies with IEEE 802.3af/at/bt PoE power supply standards, the PoE output power of the whole machine reaches 120W, and the maximum PoE output power of a single port is 15.4W/30W/60W.

    The port automatically identifies the PoE+ device and provides power. If the device loses power, the watchdog function will actively supply voltage to restart the device.

    The PoE+ ports of superior products support a priority mechanism. When the remaining power is insufficient, the power supply of high-priority ports is prioritized to avoid overloading of equipment.


    Working Mode

    • Standard switching mode: all ports communicate freely, suitable for common data transmission environment;

    • Video surveillance mode: specially designed for surveillance application scenarios to improve the freezing and mosaic phenomena in the surveillance network.

    • VLAN isolation mode---suppresses network storms, improves network performance and meets the power supply networking delay transmission function.



    Stable and reliable equipment

    The host has a low power consumption and silent design to ensure stable operation of the product.

    It uses a self-developed power supply with a high redundancy design to provide long-term stable 120W PoE++ voltage output.

    The equipment complies with safety regulations and meets national CCC standards, and is safe and reliable to use.



    Simple operation and strong scalability

    Easy to use, no configuration required, plug and play, strong compatibility, no device burnout;

    High-speed transmission, no data packet loss, flexible expansion, so the network is not restricted by the layout of power lines, saving user costs;

    Meet the network environment that requires high-density PoE+ power supply;

    It is suitable for financial institutions, government agencies, hotels, shopping malls, campuses, hospitals and small and medium-sized enterprises to build economical and efficient networks.



  • Web Standards

    IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

    Ports

    POE Port

    8 10/100/1000Mbps RJ45 ports (optional 1-4 ports support POE++ BT power supply function)

    UPLINK port

    2 10/100/1000Mbps RJ45 uplink ports

    1 Gigabit SFP uplink optical ports

    POE power supply

    1-4 10/100/1000Mbps RJ45 ports support PoE++ power supply (60W)

    1-8 10/100/1000Mbps RJ45 ports support PoE+ power supply (30W)

    The maximum power supply of the whole machine is 120W

    a single port is 15.4W/30W/60W

    Wiring method

    Support 1/2+, 3/6- lines; data 1236,4578

    End-to-end transmission, transmission distance 1000M

    Supports Cat5e and above network cables

    POE distance

    100m/250m (DIP switch)

    performance

    Store-and-forward mode

    Support 8K MAC address table depth

    Switching capacity 24Gbps,

    Forwarding rate: Full line-speed filtering and forwarding 17.85Mpps;

    Forwarding rate

    10Mbps:14880pps

    100Mbps:148800pps

    1000BASE-T: 1488095pps/port

    Port Function

    Power supply priority mechanism, fast forwarding, MAC automatic learning and aging

    IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control

    Indicator Lights

    Each port has one LINK/ACT.1000Mbps

    Power indicator, whole machine power indicator

    Extend link extension indicator

    Total Power

    120W

    power supply

    AC110~220V, 50HZ

    Usage Environment

    Working temperature: -30℃-60℃

    weight

    ≤1.5KG

    size

    202*140*45mm


  • Size: 202*140*45mm



  • Picture

    Model

    Specification



    TBC-PSD5510N

    Full Gigabit 10-port POE switch: 8 Gigabit adaptive POE intelligent power supply interfaces (1-4 ports support BT60W) + 2 Gigabit uplink electrical ports, supporting international standard IEEE802.3 af/at/ bt, port power 30-60W, total power 120W; built-in power supply desktop structure 52V2.3A, size: 202*140*45mm



    TBC-PSD5511N-3PF

    Full Gigabit 11-port POE switch: 8 Gigabit adaptive POE intelligent power supply ports (1-4 ports support BT60W) + 2 Gigabit uplink electrical ports + 1 Gigabit SFP optical port, supporting international standard IEEE802.3 af/at/ bt, port power 30-60W, total power 120W; built-in power supply desktop structure 52V2.3A, size: 202*140*45mm



    TBC-PSD5512N-4PF

    Full Gigabit 12-port POE switch: 8 Gigabit POE intelligent power supply ports (1-4 ports support BT60W) + 2 Gigabit uplink electrical ports + 2 Gigabit SFP optical ports, supporting international standard IEEE802.3 af/at/ bt, port power 30-60W, total power 120W; built-in power supply desktop structure 52V2.3A, size: 220*160*45mm



    TBC-PSD5511N20-3PF

    Full Gigabit 11-port BT-POE switch: 8 Gigabit POE intelligent power supply interfaces (1-4 ports support BT60W) + 2 Gigabit uplink electrical ports + 1 Gigabit SFP optical port, support AI automatic detection function; support VLAN function; support long-distance power supply transmission; support international standard IEEE802.3 af/at/ bt, port power 30-60W, total power 200W; built-in power supply desktop structure, size: 220*160*45mm



    TBC-PSD5512N20-4PF

    Full Gigabit 12-port BT-POE switch: 8 Gigabit POE intelligent power supply ports (1-4 ports support BT60W) + 2 Gigabit uplink electrical ports + 2 Gigabit SFP optical ports, support AI automatic detection function; support VLAN function; support long-distance power supply transmission; support international standard IEEE802.3 af/at/ bt, port power 30-60W, total power 200W; built-in power supply desktop structure, size: 220*160*45mm
