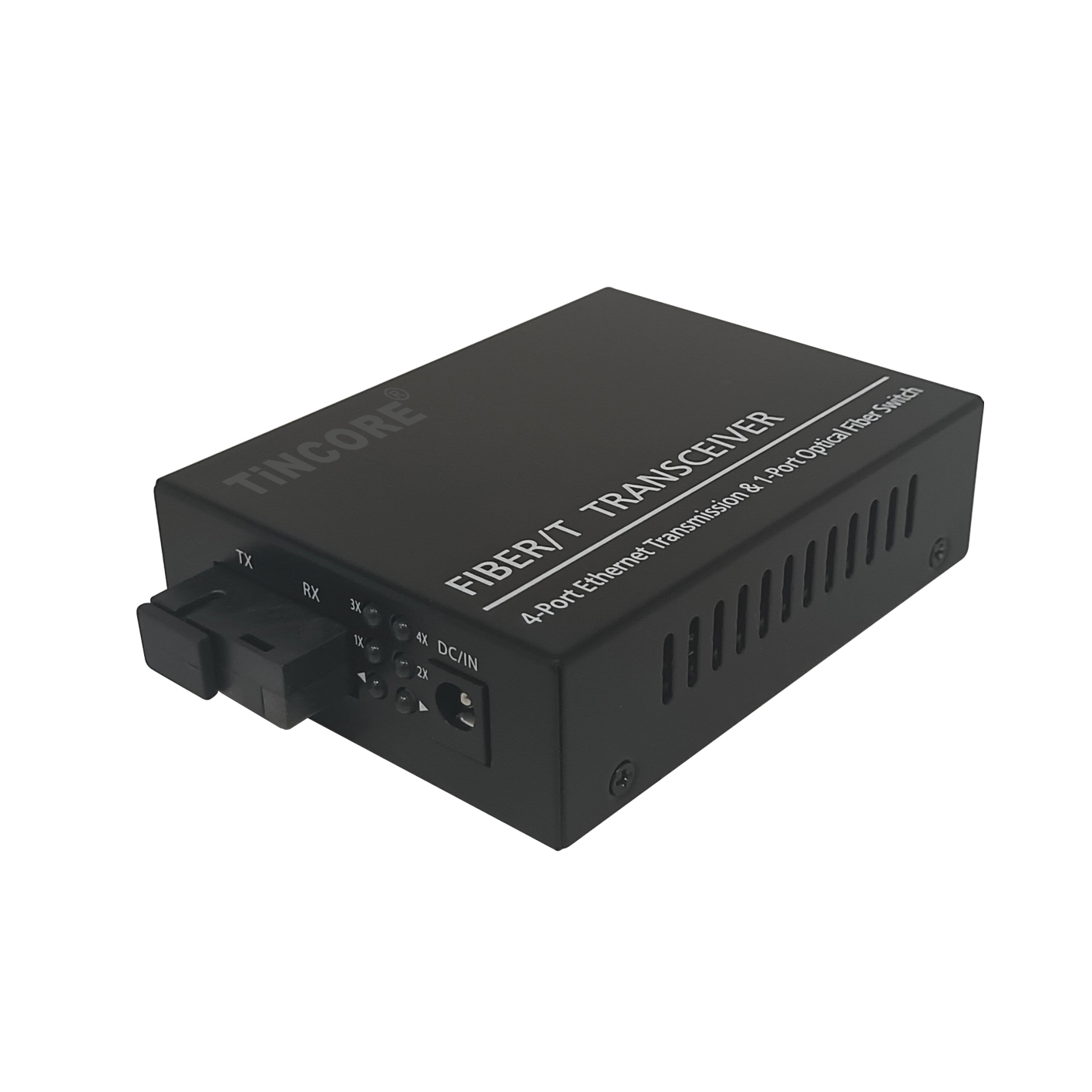

China Manufacturer 10/100/1000M single mode single fiber 1 optical port+4 RJ45 ports fiber switch

The TCE-MD2714ES20AB Series 10/100/1000Mbps 1 fiber port + 4 RJ45 ports Switch converts four independent 10/100/1000Base-TX twisted pair electrical signals and one single 1000Base-FX optical signal to each other. It extends the network's reach from the 100M limit of copper to 120KM. By using switching and store-and-forward technology to enable data before the two network connections to the media, it greatly increases the fabric flexibility of Fiber Ethernet and Reduces the cost of the network set up to support dual-fiber multi-mode, dual-fiber single-mode, single-mode single-mode fiber and other optical transmission.

  • Features
  • Parameters
  • Size
  • Information
  • application
  • Download
  • l Storage and forwarding capabilities to support rate adaptation and protocol translation;

    l Adaptive connection 10M100M and 1000M network and the network port supports full-duplex/ half-duplex adaptation and traffic control;

    l Automatic detection and correction of incorrect poles on each port of a twisted pair;

    l Data transfer rate (line speed) is 14,880 frames per second (10M);

    l Data transfer rate (line speed) is 14,8800 frames per second (100M);

    l Data transfer rate (line speed) is 14,88000 frames per second (1000M);

    l The amount of power 5W;

    l Support 12K effective MAC address table; Supports MAC address learning and aging automatically;

    l 8 MB packet buffer;

    l With broadcast storm protection;

    l Support physical isolation and logical isolation

  • Standard Protocol

    IEEE 802.3, IEEE 802.3u, IEEE 802.3d, IEEE 802.3Q

    Band Width

    RJ 45 Port : 4*10/100/1000M

    Optical Port: 1.25G

    Operation Mode

    Full /Half duplex mode


    UTP: RJ-45

    Fiber connector : SC/FC/ST

    LED Indicators


    UTP Cable

    Cat5 UTP (within 100m

    Fiber Cable

    9/125μm,(the max distance up to 20 -120km)

    50/125, 62. 5/125μm(the max distance up to 2km)

    Power Supply

    External Power supply

    5V, 2A

    Power Consumption


    Environmental Parameters

    Work Temperature


    Storage Temperature



    5%~90% non-condensing

    MTBF (Hours)


    Size and Weight



    Gross Weight



    0.5 kg


    FCC Part 15 , Class A, RoHS and CE Mark

  • size:95*70*25mm
